	Designed specifically to be a high performance 12" two-way floor monitor, it can also do double duty as a utility speaker for use on a tripod stand or over a subwoofer, utilizing a single-position pole mount. A 70 degree by 70 degree waveguide is utilized for precise coverage.



| Frequency Response (-10dB) | 50 Hz-20 kHz |
| Frequency Response (±3 dB) | 75 Hz-20 kHz |
| 覆蓋范圍 | 70? × 70? nominal |
|
				 靈敏度  |
			95 dB |
| 額定功率 | 800 W / 1600 W / 3200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 130 dB SPL Peak |
| 標(biāo)稱阻抗 | 8Ω |
| 輸入連接器 | Two NL4 |
| Operational Modes | Full Range/Bi-Amp |
| 尺寸(高 x 寬 x 厚) | 571 mm x 355 mm x 264 mm(22.5" x 13.4" x 10.4") |
| 凈重量 | 19 kg ( 42 lbs) |

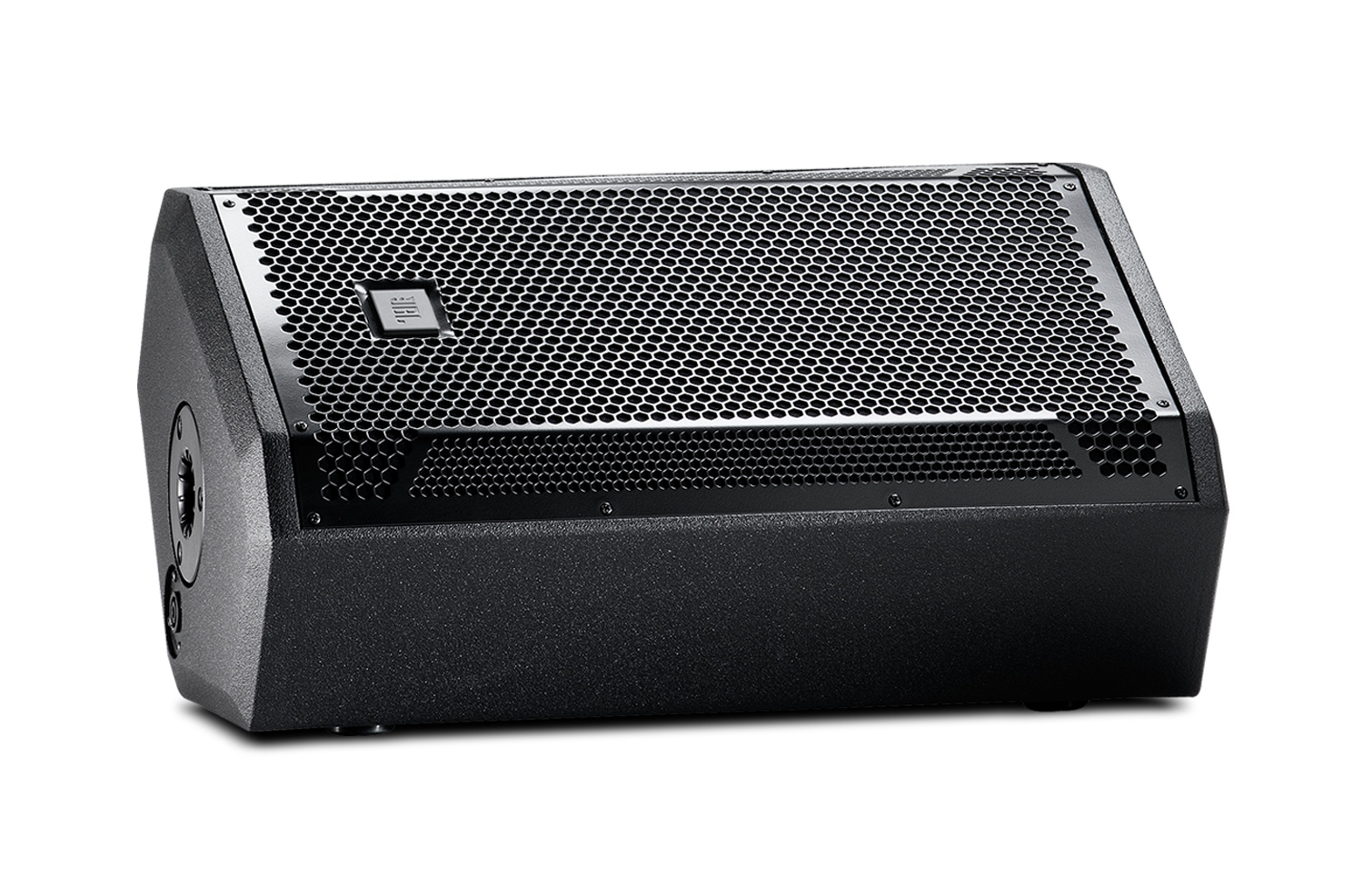

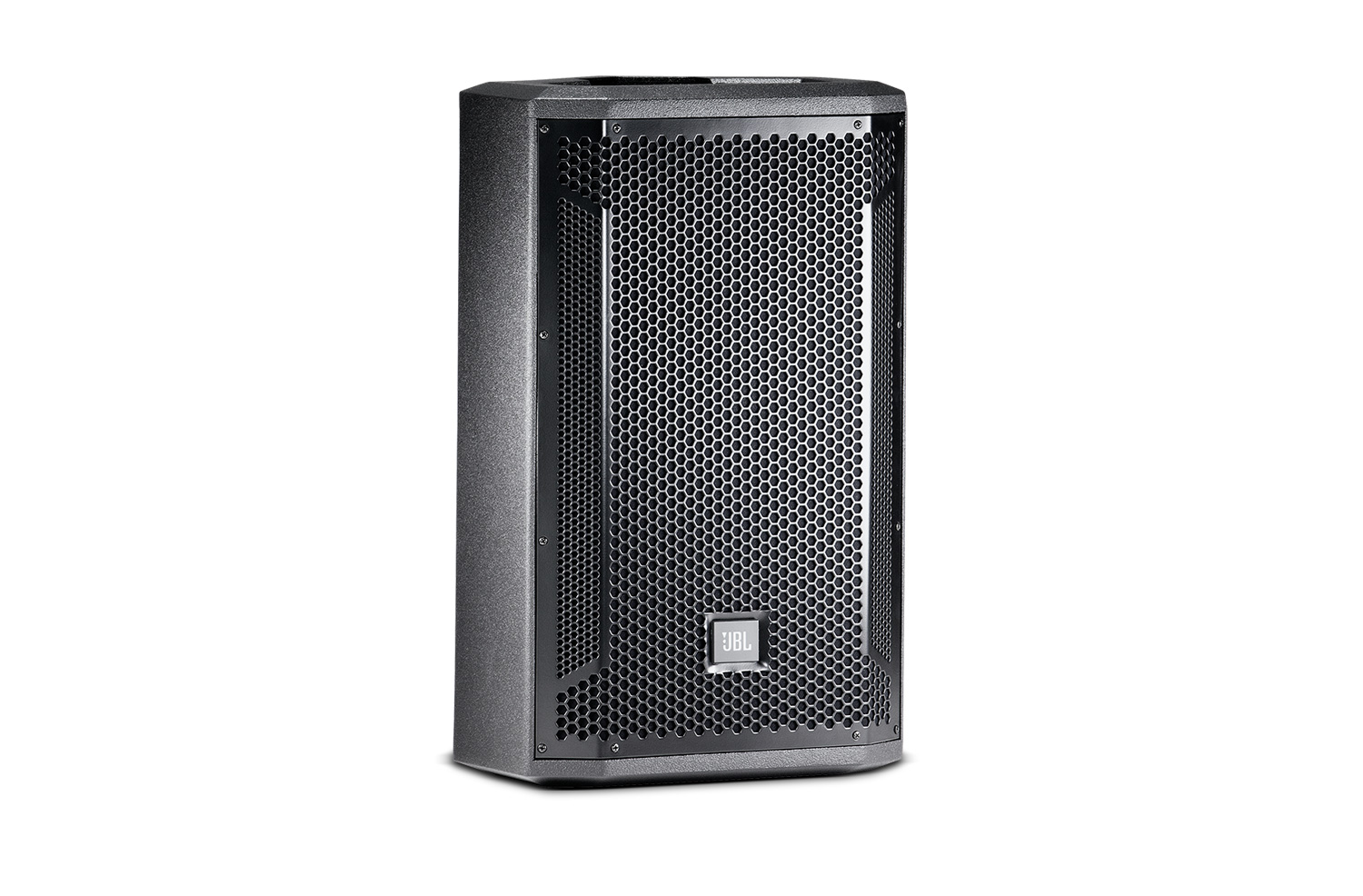

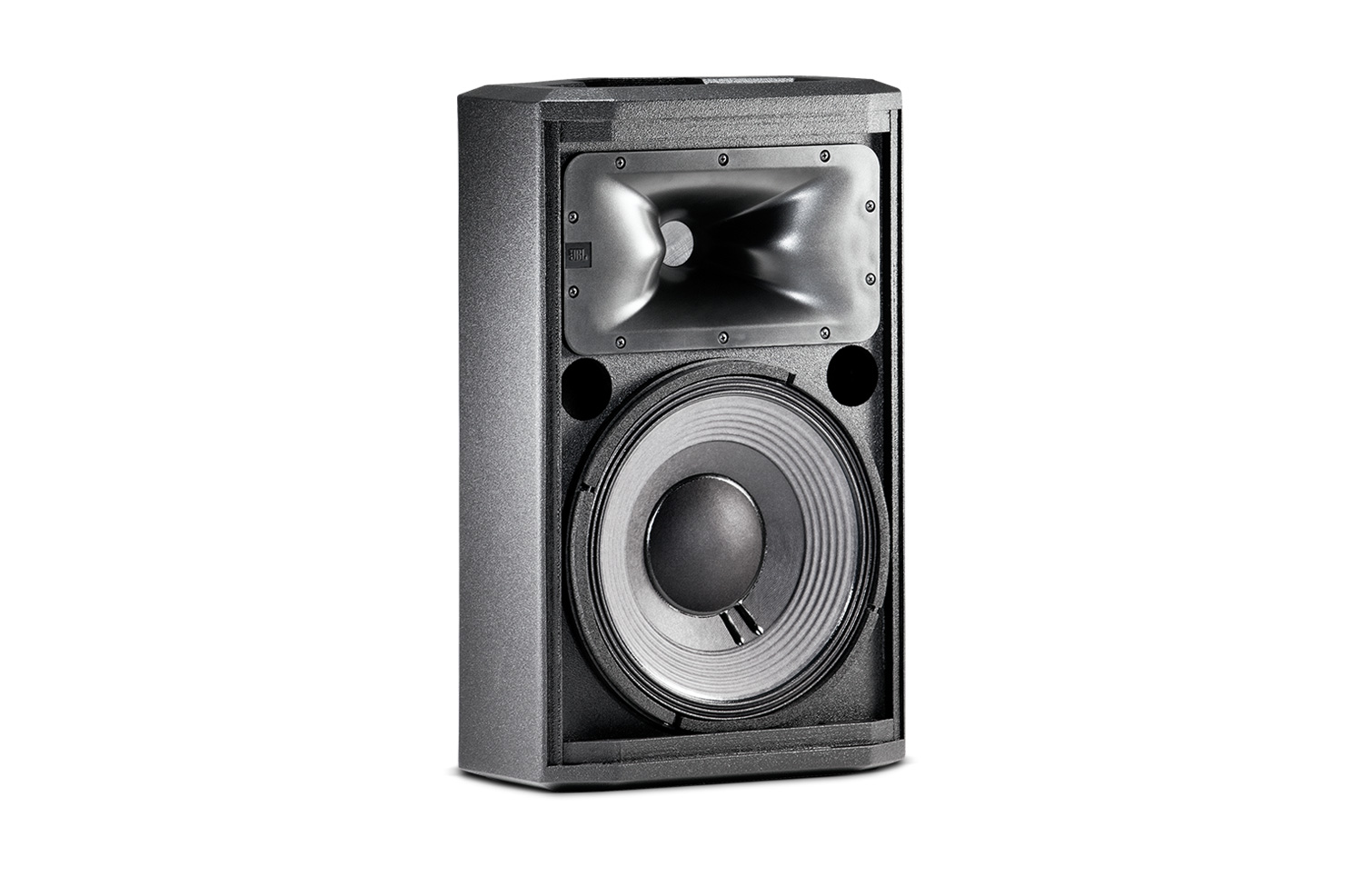

JBL STX812M音箱
美國JBL-STX800系列
