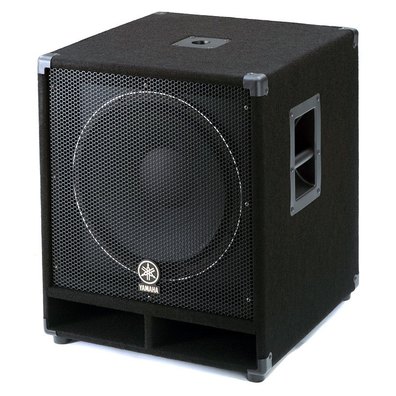

SW115V 無源音箱
S SERIES:Road-worthy, rugged carpet covered models
暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
-
15" 現澆框架驅動
-
低音可下降至35Hz
-
用于主音箱安裝的整體插孔
-
表面覆蓋耐磨毛氈（SW115V）

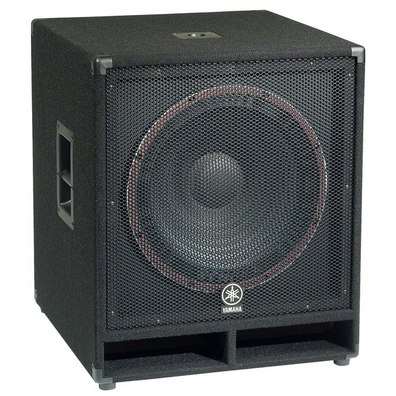

SW118V 無源音箱
S SERIES:Road-worthy, rugged carpet covered models
暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
-
18" 現澆框架驅動
-
響應低至30Hz
-
高效的低頻反射設計
-
用于主音箱安裝的整體插孔
-
表面覆蓋耐磨毛氈（SW118V）

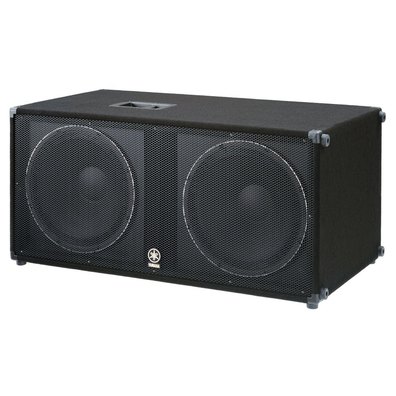

SW218V 無源音箱
S SERIES:Road-worthy, rugged carpet covered models
暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
-
雙18"超低音單元
-
現澆框架驅動
-
2400W峰值功率處理
-
表面覆蓋耐磨毛氈（SW218V）
-
精細的噴漆涂裝

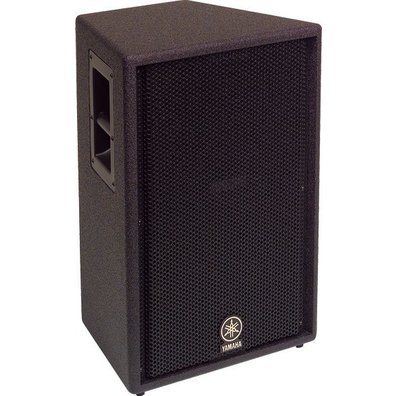

C112V 無源音箱
C SERIES:Durable spray-finished models with foamed steel grilles
暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
-
12"高功率低音單元
-
2"鈦金屬壓縮驅動
-
90 x 45度CD喇叭
-
用于支架安裝的整體插孔
-
精細的噴漆涂裝（C112V）

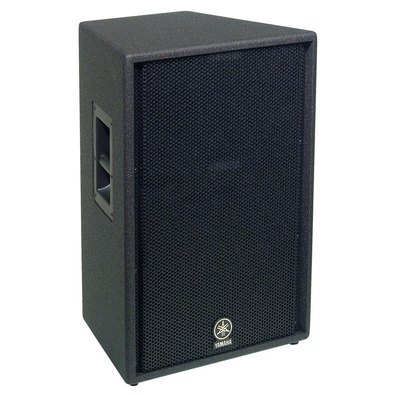

C115V 無源音箱
C SERIES:Durable spray-finished models with foamed steel grilles
暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
-
15"現澆框架低音單元
-
2"純鈦隔板
-
90 x 45度CD喇叭
-
用于支架安裝的整體插孔
-
精細的噴漆涂裝（C115V）

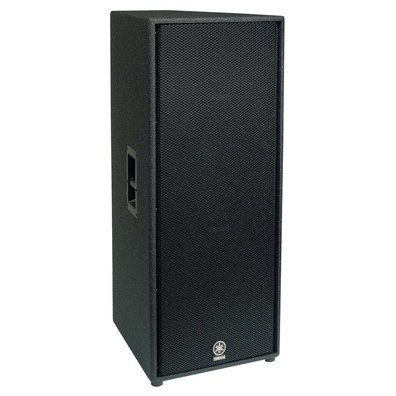

C215V 無源音箱
C SERIES:Durable spray-finished models with foamed steel grilles
暢銷的Concert Club系列的第五代產品，型號更豐富，功率更高。
-
雙15" 現澆框架低音單元
-
2000W峰值功率處理
-
緊固的支撐箱體
-
出色的高輸出性能
-
精細的噴漆涂裝（C215V）
S SERIES
|
|
S112V |
S115V |
S215V |
SM10V |
SM12V |
SM15V |
SW115V |
SW118V |
SW218V |
|
音箱類型 |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
15" subwoofer |
18" subwoofer |
Dual 18" subwoofer |
|
頻率響應 (-10dB) |
60Hz-16kHz |
55Hz-16kHz |
42Hz-16kHz |
70Hz-20kHz |
60Hz-16kHz |
55Hz-16kHz |
35Hz-2kHz |
30Hz-2kHz |
30Hz-2kHz |
|
標稱覆蓋范圍 |
H |
90 |
90 |
90 |
40 |
40 |
40 |
- |
- |
- |
|
V |
40 |
40 |
40 |
60 |
90 |
90 |
- |
- |
- |
|
部件 |
LF |
12" cone |
15" cone |
2x 15" cone |
10" cone |
12" cone |
15" cone |
15" cone |
18" cone |
2x 18" cone |
|
HF |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
Horn, 1" voice coil driver |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
- |
- |
- |
|
電功率 |
噪聲 |
175W (EIA) |
250W (EIA) |
500W (EIA) |
125W (EIA) |
175W (EIA) |
250W (EIA) |
250W (EIA) |
300W (EIA) |
600W (EIA) |
|
PGM |
350W |
500W |
1000W |
250W |
350W |
500W |
500W |
600W |
1200W |
|
PEAK |
700W |
1000W |
2000W |
500W |
700W |
1000W |
1000W |
1200W |
2400W |
|
額定阻抗 |
8ohms |
8ohms |
4ohms |
8ohms |
8ohms |
8ohms |
4ohms |
4ohms |
4ohms |
|
SPL |
靈敏度( 1W, 1m軸向) |
97dB SPL |
99dB SPL |
99dB SPL |
96dB SPL |
97dB SPL |
99dB SPL |
95dB SPL |
96dB SPL |
98dB SPL |
|
連續 (計算得出) |
119dB SPL |
123dB SPL |
126dB SPL |
117dB SPL |
119dB SPL |
123dB SPL |
119dB SPL |
121dB SPL |
126dB SPL |
|
峰值 (計算得出) |
125dB SPL |
129dB SPL |
132dB SPL |
123dB SPL |
125dB SPL |
129dB SPL |
125dB SPL |
127dB SPL |
132dB SPL |
|
I/O 接口 |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
|
外形 |
30 degrees trapezoidal |
30 degrees trapezoidal |
25 degrees trapezoidal |
Wedge |
Wedge |
Wedge |
Rectangular |
Rectangular |
Rectangular |
|
涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
|
把手 |
2 |
2 |
2 |
1 |
1 |
1 |
2 |
2 |
2 |
|
音箱架立柱插孔 |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
- |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
- |
|
外觀尺寸 |
W |
420mm; 16-1/2in |
489mm; 19-1/4in |
495mm; 19-1/2in |
560mm; 22in |
632mm; 24-7/8in |
719mm; 28-1/4in |
506mm; 19-7/8in |
610mm; 24in |
1221mm; 48-1/8in |
|
H |
632mm; 24-7/8in |
719mm; 28-1/4in |
1167mm; 46in |
353mm; 13-7/8in |
414mm; 16-1/4in |
483mm; 19in |
611mm; 24in |
728mm; 28-5/8in |
578mm; 22-3/4in |
|
D |
333mm13-1/8in |
377mm; 14-7/8in |
597mm; 23-1/2in |
277mm; 10-7/8in |
351mm; 13-7/8in |
343mm; 13-1/2in |
532mm; 21in |
641mm; 25-1/4in |
659mm; 26in |
|
凈重 |
20.8kg; 45.9in |
29.4kg; 64.8lbs |
47.2kg; 104.1lbs |
13.4kg; 29.5lbs |
21.4kg; 47.2lbs |
28kg; 61.7lbs |
28.2kg; 62.2lbs |
39kg; 86lbs |
65.4kg; 144.2lbs |
C SERIES
|
|
C112V |
C115V |
C215V |
CM10V |
CM12V |
CM15V |
CW115V |
CW118V |
CW218V |
|
音箱類型 |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
2-way full-range speaker |
15" subwoofer |
18" subwoofer |
Dual 18" subwoofer |
|
頻率響應 (-10dB) |
60Hz-16kHz |
55Hz-16kHz |
42Hz-16kHz |
70Hz-20kHz |
60Hz-16kHz |
55Hz-16kHz |
35Hz-2kHz |
30Hz-2kHz |
30Hz-2kHz |
|
標稱覆蓋范圍 |
H |
90 |
90 |
90 |
40 |
40 |
40 |
- |
- |
- |
|
V |
40 |
40 |
40 |
60 |
90 |
90 |
- |
- |
- |
|
部件 |
LF |
12" cone |
15" cone |
2x 15" cone |
10" cone |
12" cone |
15" cone |
15" cone |
18" cone |
2x 18" cone |
|
HF |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
Horn, 1" voice coil driver |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
- |
- |
- |
|
電功率 |
噪聲 |
175W (EIA) |
250W (EIA) |
500W (EIA) |
125W (EIA) |
175W (EIA) |
250W (EIA) |
250W (EIA) |
300W (EIA) |
600W (EIA) |
|
PGM |
350W |
500W |
1000W |
250W |
350W |
500W |
500W |
600W |
1200W |
|
PEAK |
700W |
1000W |
2000W |
500W |
700W |
1000W |
1000W |
1200W |
2400W |
|
額定阻抗 |
8ohms |
8ohms |
4ohms |
8ohms |
8ohms |
8ohms |
4ohms |
4ohms |
4ohms |
|
SPL |
靈敏度( 1W, 1m軸向) |
97dB SPL |
99dB SPL |
99dB SPL |
96dB SPL |
97dB SPL |
99dB SPL |
95dB SPL |
96dB SPL |
98dB SPL |
|
連續 (計算得出) |
119dB SPL |
123dB SPL |
126dB SPL |
117dB SPL |
119dB SPL |
123dB SPL |
119dB SPL |
121dB SPL |
126dB SPL |
|
峰值 (計算得出) |
125dB SPL |
129dB SPL |
132dB SPL |
123dB SPL |
125dB SPL |
129dB SPL |
125dB SPL |
127dB SPL |
132dB SPL |
|
I/O 接口 |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
2x Phone, 2x speakON |
|
外形 |
30 degrees trapezoidal |
30 degrees trapezoidal |
25 degrees trapezoidal |
Wedge |
Wedge |
Wedge |
Rectangular |
Rectangular |
Rectangular |
|
涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
噴涂涂裝 |
|
把手 |
2 |
2 |
2 |
1 |
1 |
1 |
2 |
2 |
2 |
|
音箱架立柱插孔 |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
- |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
1x 35mm (1-3/8in) |
- |
|
外觀尺寸 |
W |
416mm; 16-3/8in |
485mm; 19-1/8in |
491mm; 19-3/8in |
556mm; 21-7/8in |
628mm; 24-3/4in |
715mm; 28-1/8in |
500mm; 19-5/8in |
605mm; 23-7/8in |
1217mm; 47-7/8in |
|
H |
628mm; 24-3/4in |
715mm; 28-1/8in |
1163mm; 45-3/4in |
349mm; 13-3/4in |
410mm; 16-1/8in |
339mm; 13-3/8in |
607mm; 23-7/8in |
720mm; 28-3/8in |
574mm; 22-5/8in |
|
D |
329mm; 13in |
373mm; 14-5/8in |
593mm; 23-3/8in |
273mm; 10-3/4in |
339mm; 13-3/8in |
343mm; 13-1/2in |
528mm; 20-3/4in |
637mm; 25-1/8in |
655mm; 25-3/4in |
|
凈重 |
21.3kg; 47in |
30.3kg; 66.8lbs |
47.5kg; 104.7lbs |
13.3kg; 29.3lbs |
21.8kg; 48.1lbs |
28.8kg; 63.5lbs |
28kg; 61.7lbs |
37.2kg; 82lbs |
64.7kg; 142.7lbs |
FLYABLE MODELS
|
|
C112VA |
C115VA |
|
Speaker type |
2-way full-range speaker |
2-way full-range speaker |
|
Frequency range (-10dB) |
60Hz-16kHz |
55Hz-16kHz |
|
Nominal coverage |
H |
90 |
90 |
|
V |
40 |
40 |
|
Components |
LF |
12" cone |
15" cone |
|
HF |
Horn, 2" voice coil driver |
Horn, 2" voice coil driver |
|
Power rating |
NOISE |
175W (EIA) |
250W (EIA) |
|
PGM |
350W |
500W |
|
PEAK |
700W |
1000W |
|
Nominal impedance |
8ohms |
8ohms |
|
SPL |
Sensitivity (1W; 1m on axis) |
97dB SPL |
99dB SPL |
|
Continuous (Calculated) |
119dB SPL |
123dB SPL |
|
Peak (Calculated) |
125dB SPL |
129dB SPL |
|
I/O connectors |
Barrier strip terminal |
Barrier strip terminal |
|
Shape |
30 degrees trapezoidal |
30 degrees trapezoidal |
|
Finish |
Sprayed finish |
Sprayed finish |
|
Flying and mounting hardware |
4x 3/8" eyebolt, 4x W5/16" screw for 251 series bracket |
4x 3/8" eyebolt |
|
Dimensions |
W |
416mm; 16-3/8in |
485mm; 19-1/8in |
|
H |
620mm; 24-3/8in |
707mm; 27-7/8in |
|
D |
329mm; 13in |
373mm; 14-5/8in |
|
Net weight |
21.8kg; 48.1lbs |
29.9kg; 65.9lbs |
