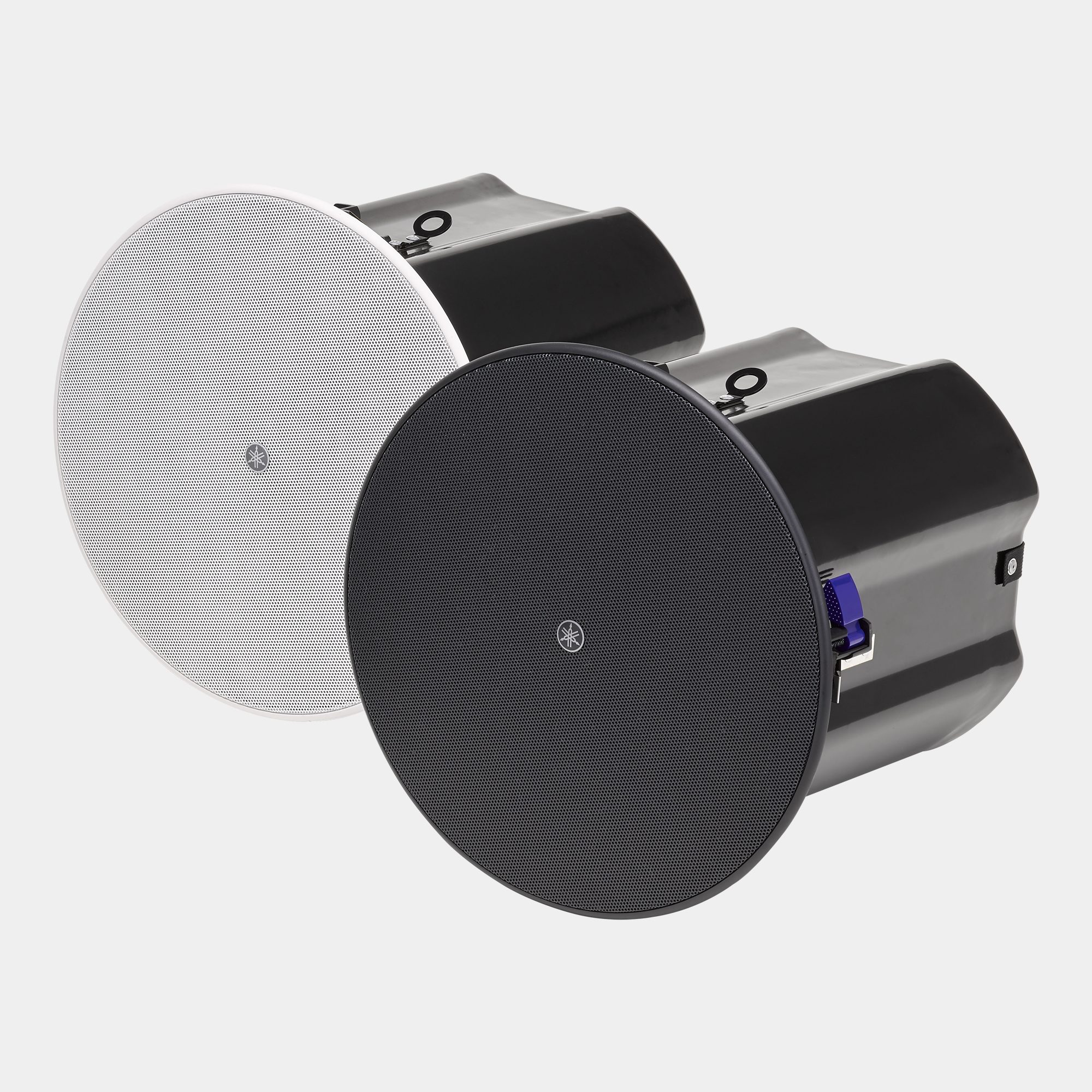

VXC系列吸頂安裝揚聲器

VXC系列有VXC8 / VXC8W VXC6 / VXC6 VXC4 / VXC4W不同尺寸的型號，您可以根據場合的需要擇優選擇。

產品信息如有變動，恕不另行通知。網站上信息僅供參考，一切以具體實物為準。

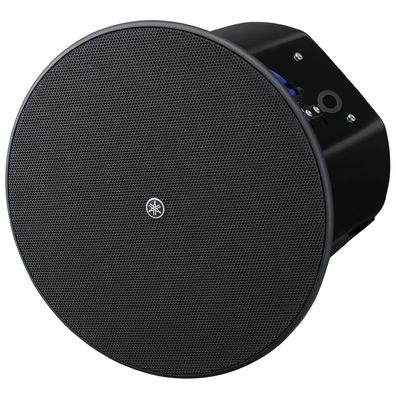

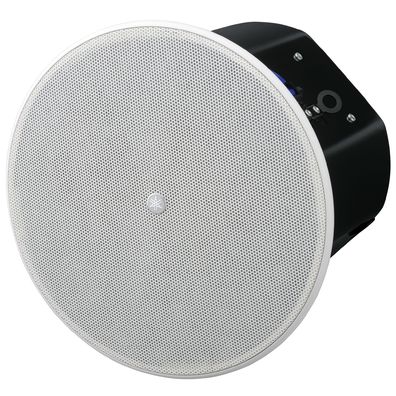

VXC8 / VXC8W 吸頂安裝揚聲器

8" 低音單元，1" 半球形高音單元

VXC6 / VXC6W 吸頂安裝揚聲器

6.5" 低音單元，0.75" 半球形高音單元

VXC4 / VXC4W 吸頂安裝揚聲器

4"全頻單元

		VXC8 / VXC8W	VXC6 / VXC6W	VXC4 / VXC4W
音箱類型		2- 路低頻,密閉式箱體	2- 路低頻,密閉式箱體	全頻,低音反射式
頻率范圍 (-10dB)		55Hz - 20kHz (Half-space:2π)	56Hz - 20kHz (Half-space:2π)	80Hz - 20kHz (Half-space:2π)
覆蓋角		100° conical (Half-space:2π)	110° conical (Half-space:2π)	130° conical (Half-space:2π)
部件	LF	8" Cone	6.5" Cone	-
	HF	1" Soft dome	0.75" Soft dome	-
	LF-HF	-	-	4" full-range
電功率	噪聲	90W	75W	30W
	PGM	180W	150W	60W
	PEAK	360W	300W	120W
標稱阻抗		8Ω	8Ω	8Ω
轉換器標簽	100V	60W (170Ω), 30W (330Ω), 15W (670Ω)	60W (170Ω), 30W (330Ω), 15W (670Ω)	30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
轉換器標簽	70V	60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)	60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)	30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)
SPL	靈敏度 (1W; 1m on axis)	90dB SPL (Half-space:2π)	86dB SPL (Half-space:2π)	87dB SPL (Half-space:2π)
SPL	大 SPL (計算所得)	116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)	111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)	108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
接口		1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)	1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)	1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
顏色		VXC8: Black / VXC8W: White	VXC6: Black / VXC6W: White	VXC4: Black / VXC4W: White
外觀尺寸	Diameter	325mm (12.8")	286mm (11.3")	225mm (8.9")
外觀尺寸	D	259mm (10.2")	205mm (8.1")	195mm (7.7")
重量		6.6kg (14.6lbs)	4.4kg (9.7lbs)	2.6kg (5.7lbs)
Cutout size		Ø285 mm (Ø11 1/4")	Ø247 mm (Ø9 3/4")	Ø186 mm (Ø7-5/16")
Required ceiling board thickness		5 mm – 35 mm	5 mm – 35 mm	5 mm – 35 mm
附件		O-ring, Tile Rail, Cutout Template	O-ring, Tile Rail, Cutout Template	O-ring, Tile Rail, Cutout Template
Packaging		Packaged in pairs	Packaged in pairs	Packaged in pairs
Certificate		UL1480, UL2043, NFPA70, CE, EAC, RoHS	UL1480, UL2043, NFPA70, CE, EAC, RoHS	UL1480, UL2043, NFPA70, CE, EAC, RoHS

		VXC8-VA / VXC8-VAW	VXC6-VA / VXC6-VAW	VXC4-VA / VXC4-VAW
音箱類型		2- 路低音反射式	2- 路低音反射式	Full-range, Acoustic suspension
頻率范圍 (-10dB)		55Hz - 20kHz (Half-space:2π)	56Hz - 20kHz (Half-space:2π)	80Hz - 20kHz (Half-space:2π)
覆蓋角		100° conical (Half-space:2π)	110° conical (Half-space:2π)	130° conical (Half-space:2π)
部件	LF	8" Cone	6.5" Cone	-
	HF	1" Soft dome	0.75" Soft dome	-
	LF-HF	-	-	4" full-range
電功率	噪聲	90W	75W	30W
	PGM	180W	150W	60W
	PEAK	360W	300W	120W
標稱阻抗		8Ω	8Ω	8Ω
轉換器標簽	100V	60W (170Ω), 30W (330Ω), 15W (670Ω)	60W (170Ω), 30W (330Ω), 15W (670Ω)	30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
轉換器標簽	70V	60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)	60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)	30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)
SPL	靈敏度 (1W; 1m on axis)	89dB SPL (Half-space:2π)	86dB SPL (Half-space:2π)	87dB SPL (Half-space:2π)
SPL	大 SPL (計算所得)	114dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)	111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)	108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
接口		1x Ceramic terminal block (3P) (input: +/-, Earth)	1x Ceramic terminal block (3P) (input: +/-, Earth)	1x Ceramic terminal block (3P) (input: +/-, Earth)
顏色		VXC8-VA: Black / VXC8-VAW: White	VXC6-VA: Black / VXC6-VAW: White	VXC4-VA: Black / VXC4-VAW: White
Waterproof		IP32	IP32	IP32
外觀尺寸	Diameter	325mm (12.8")	286mm (11.3")	225mm (8.9")
外觀尺寸	D	295mm (11.6")	241mm (9.5")	232mm (9.1")
重量		6.6kg (14.6lbs)	4.4kg (9.7lbs)	2.6kg (5.7lbs)
Cutout size		Ø285 mm (Ø11 1/4")	Ø247 mm (Ø9 3/4")	Ø186 mm (Ø7-5/16")
Required ceiling board thickness		5 mm – 35 mm	5 mm – 35 mm	5 mm – 35 mm
附件		O-ring, Tile Rail, Cutout Template	O-ring, Tile Rail, Cutout Template	O-ring, Tile Rail, Cutout Template
Packaging		Packaged in pairs	Packaged in pairs	Packaged in pairs
Certificate		CE, RoHS	CE, RoHS	CE, RoHS
EN54-24 compliance		Yes (DoP No. 0359-CPR-00405)	Yes (DoP No. 0359-CPR-00405)	Yes (DoP No. 0359-CPR-00405)
